Quantum Cores
Atomic Prisms
Atomic Prisms

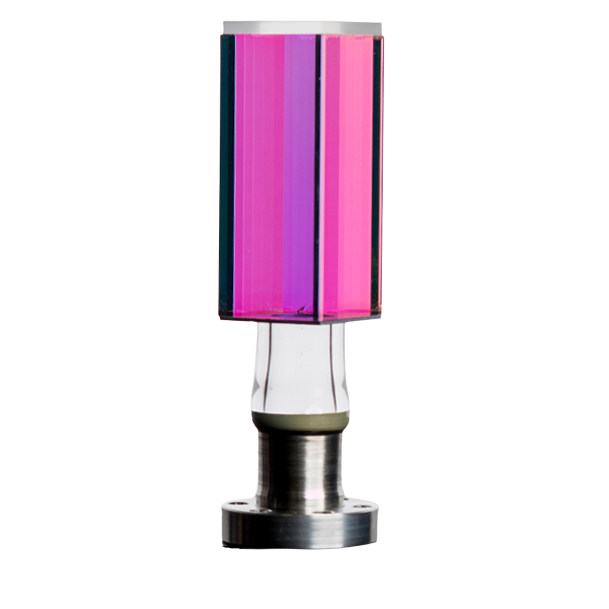

Infleqtion’s high-quality UHV glass cells offer new optical access to in-vacuum experiments. Assembled with an optical contacting process, the cells provide high-quality AR coatings while maintaining very high optical flatness in the cell walls, enabling minimal optical distortion through the cell.
Cold Atom Source Cells
The CASC is the core of a high-flux atom delivery system. Differential pumping of the system is maintained by an aperture in a silicon plate that isolates the user’s vacuum system from the higher pressures required for high-density 2D MOT operation.
Magneto-Optical Trap Systems
Looking for an efficient solution to producing a live magneto-optical trap (MOT) or Bose-Einstein Condensate (BEC)? Infleqtion’s compact, pre-assembled systems save time and money.
miniMOT V2
The miniMOT V2 is a unique, compact, off-the-shelf trapped atom vacuum system that enables users to effortlessly create and control quantum matter based on rubidium (Rb) or cesium (Cs) atoms with an intuitive user interface, providing greater control over critical system parameters.
doubleMOT
Looking for a powerful and versatile cold atom core? The doubleMOT is a self-contained, tabletop, UHV system that makes it easy to cool and trap atoms, with applications ranging from fundamental quantum physics research to developing sensors and new quantum technologies.
Physics Platform
The Physics Platform provides the foundation optics for experiments, including a 3D magneto-optical trap (MOT) fed by a 2D+ MOT. It also includes optics for optical pumping and imaging neutral and ultracold atoms in the science cell.
miniMOT Package
Introducing the miniMOT package, the ultimate solution for producing a compact and efficient magneto-optical trap (MOT). Our pre-assembled unit is easy to use and produces a live MOT within a few hours, saving time and cost for even the most seasoned researchers.
RuBECi
Looking for a powerful and versatile cold atom core? The RuBECi is a self-contained, tabletop, UHV system that makes it easy to cool and trap atoms, with applications ranging from fundamental quantum physics research to developing sensors and new quantum technologies.
Coil Assemblies
MOT Coil Assembly
The MOT Coil Assembly consists of a pair of circular coils connected in an anti-Helmholtz configuration. Provided on a convenient mounting frame, the coil assembly makes it easy to mount and align MOT coils around a miniMOT V2, doubleMOT, or RuBECi cell. The coil pair is sold with a 3’ cable.
4-Channel Coil Driver
The 4-channel coil driver consists of four bidirectional voltage-controlled current sources that are designed to drive inductive loads. The output currents are directly proportional to the input voltage, i.e. an input voltage of +1.0 V will set the output current to +1.0 A.

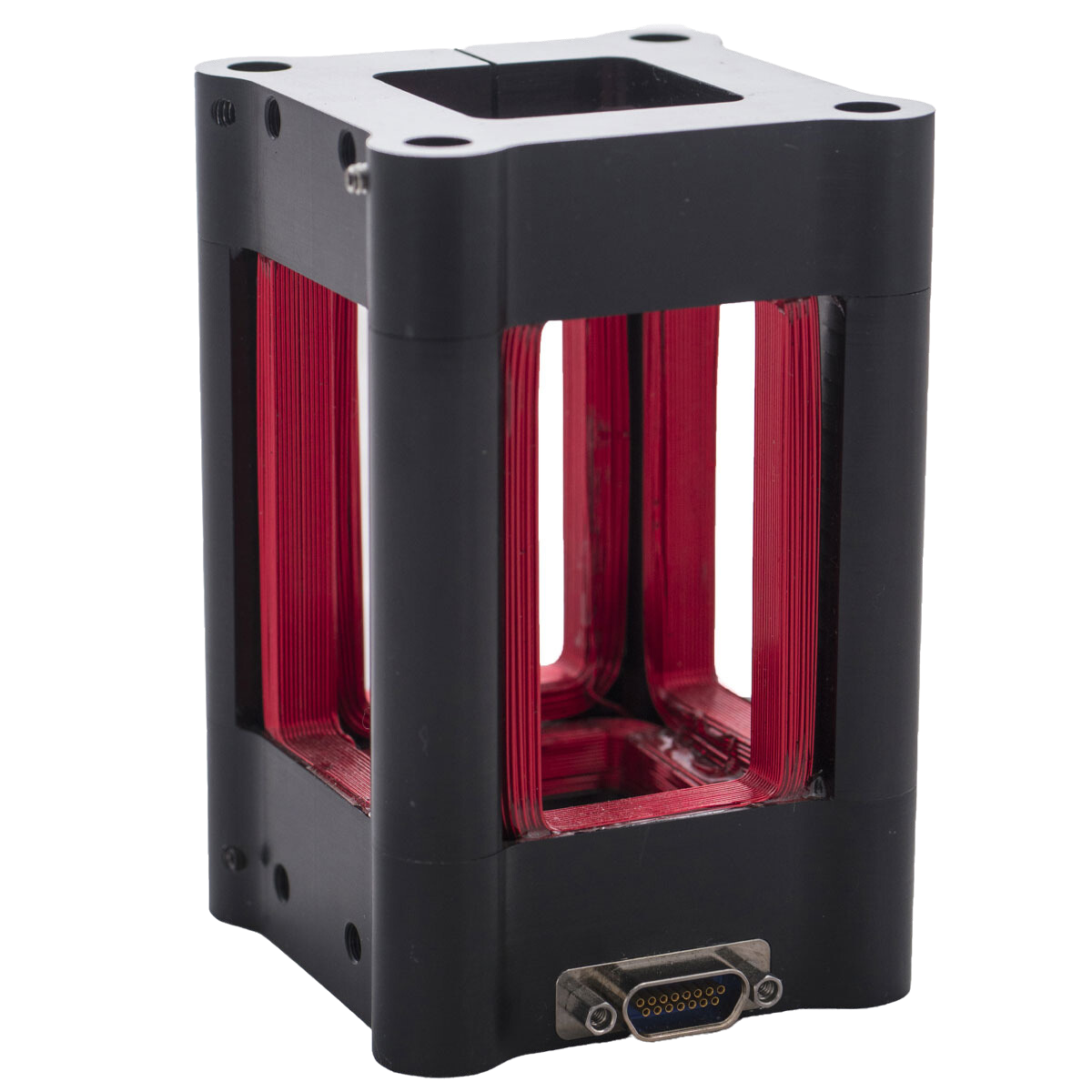

Tri Coil Assembly
The Tri Coil Assembly is a versatile solution for applying magnetic bias fields and gradients to atomic clouds in Infleqtion’s vacuum cells. With six coils arranged to generate MOT fields and bias fields for atom chip traps, the assembly simplifies applying or canceling low-order fields while requiring minimal power.
2D+ MOT Magnet Assembly
The 2D+ MOT Magnet Assembly produces magnetic field gradients appropriate for a 2D(+) MOT. For use with the RuBECi, doubleMOT, and CASC cells, permanent magnets provide a 2D quadrupole field over the cell with a field gradient of ~30 Gauss/cm.
Plug and Play Solutions
Coil Picas
The Coil Picas is a compact, alignment-free beam delivery package. It produces a 2D+ MOT beam configuration with three user-supplied fiber-coupled light inputs. It can create a cold atom flux of >10⁹ atoms per second when used in conjunction with Infleqtion’s CASC, Cold Atom Source Cell.
Fixed Picas
The Fixed Picas is a compact, alignment-free beam delivery package. It produces a 2D+ MOT beam configuration with three user-supplied fiber-coupled light inputs, capable of producing a cold atom flux of >10⁹ atoms per second when used with Infleqtion’s CASC, Cold Atom Source Cell.
Ion Traps
Cryogenic Ion Trap Package
With Infleqtion's cryogenic ion trap housings, you'll have everything you need to take your ion trapping experiments to the next level! The cryogenic ion trap is designed with self-contained housings and offers a high-optical UHV environment for trapping ions with long trap lifetimes.
Compact Ion Trap Package
The Compact Ion Trap Package surface is ion milled before assembly into an UHV-baked chamber to provide an ultra-clean ion trap surface. The C-cut sapphire window material ensures a low birefringence and high UV transparency. It was initially designed to house a Sandia HOA trap.
Introducing the desqtopMOT
Explore, educate, and empower the workforce of tomorrow with the desqtopMOT cold atom platform
