Fixed and Adjustable Picas

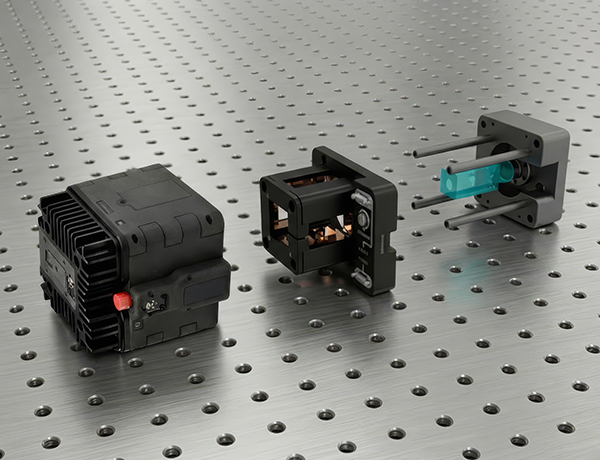

Adjustable Picas Assembly Model with Coils and Source Cell on a breadboard

Simpler 2D+ MOTs

Picas replaces a free-space optical setup with a compact beam-delivery package designed for straightforward integration. With an Infleqtion CASC, it produces a typical flux of more than 10^9 pre-cooled atoms per second.

Select a fixed or adjustable magnetic-field configuration, then choose rubidium or cesium and optional photodiodes.

Standard Across Every Picas

2D+ MOT beam configuration with three user-supplied FC/APC fiber inputs
Rubidium optics at 780 nm or cesium optics at 852 nm
Typical flux of more than 10^9 pre-cooled atoms per second with an Infleqtion CASC
Viewing aperture and optional photodiodes for polarization cleaning and power monitoring

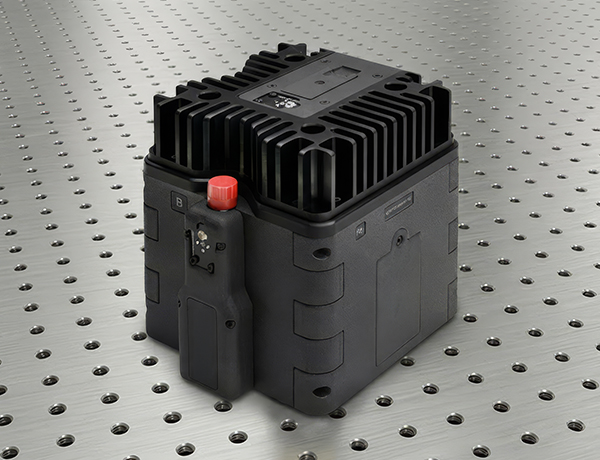

An Infleqtion picas device on an optical breadboard.

Compact Permanent magnets

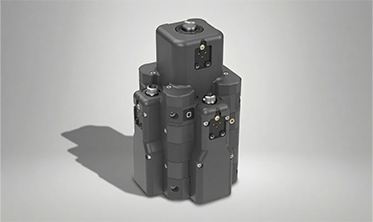

Fixed Picas

67 x 67 x 112 mm
0.25 kg
3 mm diameter viewing aperture
Integrates with CAMV2D magnet assembly

Typical atom flux

>10^9 pre-cooled atoms/s

Flexible Adjustable coils

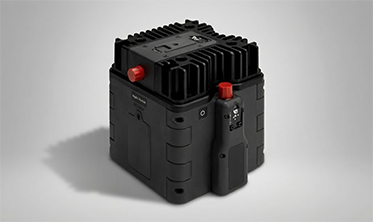

Adjustable Picas

101 x 130.7 x 113.4 mm
1.9 kg
7 mm square viewing aperture
Integrates with CAMAPA coil assembly

Typical atom flux

>10^9 pre-cooled atoms/s

Benefits

More Experiment, Less Setup

Select the optical and magnetic-field package that fits your 2D+ MOT, without rebuilding the beam-delivery system.

Alignment-Free Optics

Integrated optomechanics deliver the 2D+ MOT beam configuration without routine free-space alignment.
Choose Rubidium or Cesium

Select 780 nm optics for rubidium or 852 nm optics for cesium.
Monitor Beam Power

Optional photodiodes support polarization cleaning and power monitoring across all three beams.
Built for Quantum Cores

Designed to integrate with the Infleqtion CASC and matched fixed-magnet or adjustable-coil assemblies.

Specifications

Find the Picas for Your Setup

Compare field control, footprint, aperture, and options.

Attribute	Fixed Picas	Adjustable Picas
Magnetic field	CAMV2D permanent magnets	CAMAPA adjustable coils
Field control	Fixed	Four individually controlled coils
Dimensions	67 x 67 x 112 mm	101 x 130.7 x 113.4 mm
Weight	0.25 kg	1.9 kg (4.18 lb)
Viewing aperture	3 mm diameter	7 mm square
Species	Rubidium or cesium	Rubidium or cesium
Optical input	3 x FC/APC	3 x FC/APC
Typical atom flux*	>10^9 atoms/s	>10^9 atoms/s
Photodiodes	Included	Included
Customer System Adapter	CAAPC1	CAAMPA
Infleqtion System Adapter	Not required	CAAMPAD

*Typical atom flux is measured with an Infleqtion CASC and depends on the exact experimental configuration. Product specifications are subject to change.
