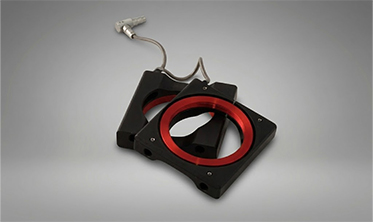

miniMOT Coils
- Anti-Helmholtz coil pair
- 0-13.5 G/(A-cm) field gradient
- 0-1 A operating range
- Mounts to a standard 45 mm rail
Best Fit
Compact 3D MOT field

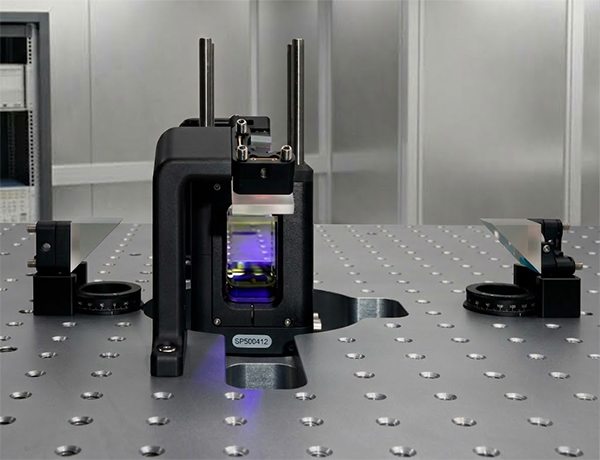

Magnetic Field Solutions Made to Fit
Pre-engineered assemblies reduce the work of designing, mounting, and aligning magnetic-field hardware around compatible Infleqtion vacuum cells. Choose the field geometry and control approach that fits your cold atom experiment.
Compatibility varies by assembly. Confirm cell, rail, driver, and magnetic-field requirements with Infleqtion before ordering.
Match the Field to the Task
-
Generate a compact 3D MOT field with miniMOT Coils
-
Create and align a fixed 2D MOT gradient with permanent magnets
-
Create and tune a 2D MOT gradient with four individually controlled coils
-

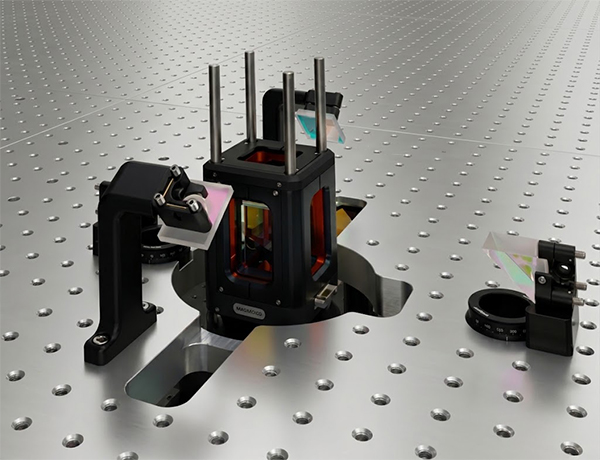

Apply or cancel fields along three axes with the TriCoil Assembly
Product Options
Choose by Field Role
Each assembly solves a distinct magnetic-field task. Compare field geometry, power and control requirements, mounting, and system compatibility before selecting your configuration.

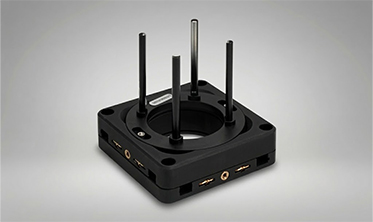

2D+ MOT Magnet Assembly
- Fixed 25-40 G/cm field gradient
- X-Y translation for field alignment
- Permanent magnets require no power
- Works with CASC and fixed Picas
Best Fit
Steady 2D MOT gradient

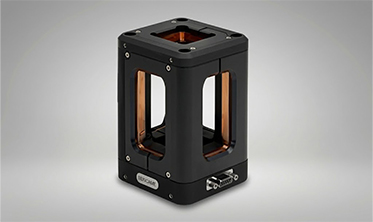

TriCoil Assembly
- Fields and gradients in X, Y, and Z
- Up to 3 A maximum current
- Micro-D connection
- Fits 2 cm and imaging UHV cells
Best Fit
Multi-axis Field Control
2D MOT Coils
- Four coils with independent control
- Approx. 14 G/cm at 1.5 A per coil
- Integrated CASC dispenser connection
- Works with Adjustable Picas, CASC, and doubleMOT
Best Fit
Switchable
Quick Compare
Compare Field Architectures
Compare field roles, sources, controls, and system fit.
| Assembly | Primary role | Field source | Adjustment or control | Compatible systems |
|---|---|---|---|---|
| miniMOT Coils | 3D MOT field | Coil pair | Drive current | miniMOT V2; doubleMOT; RuBECi |
| 2D+ MOT Magnet | 2D MOT source | Permanent magnets | X-Y translation stage | CASC; fixed Picas; doubleMOT; RuBECi |
| TriCoil Assembly | Three-axis fields | Three coil pairs | External current drivers | doubleMOT rails; 2 cm and imaging UHV cells |
| 2D MOT Coils | Adjustable 2D MOT field | Four individually controlled coils | Individual current control; 2.8 A maximum per coil | Adjustable Picas; CASC; doubleMOT |
Note:2D MOT Coils require the appropriate mounting plate for CASC or doubleMOT configurations. Confirm final system, mounting, electrical, and field requirements before ordering.
Related Products
Build Your Quantum System
Pair your magnet assembly with compatible Infleqtion vacuum and beam-delivery hardware to create, control, and study cold atoms.
-

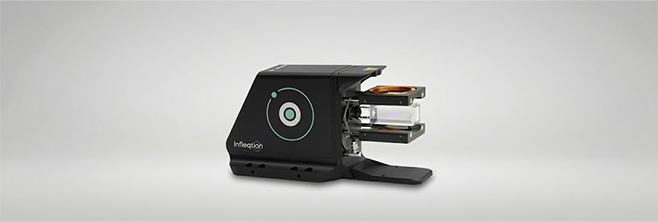

Explore miniMOT V2miniMOT V2
A compact, off-the-shelf vacuum system for creating and controlling Rb or Cs cold atoms, with integrated electronics that can drive miniMOT Coils.
-
Explore doubleMOTdoubleMOT
A self-contained, tabletop UHV system with source and science cells for high atom flux, long trap lifetimes, and strong optical access.
-

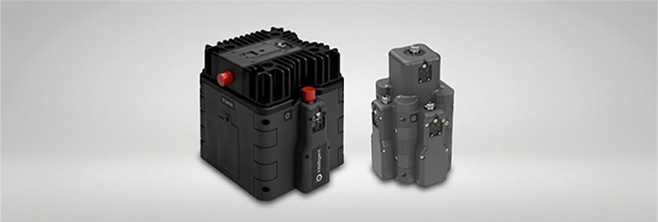

Explore PicasAdjustable Picas
A compact, alignment-free beam-delivery package designed to pair with the 2D MOT Coils and CASC for a 2D+ MOT source.
