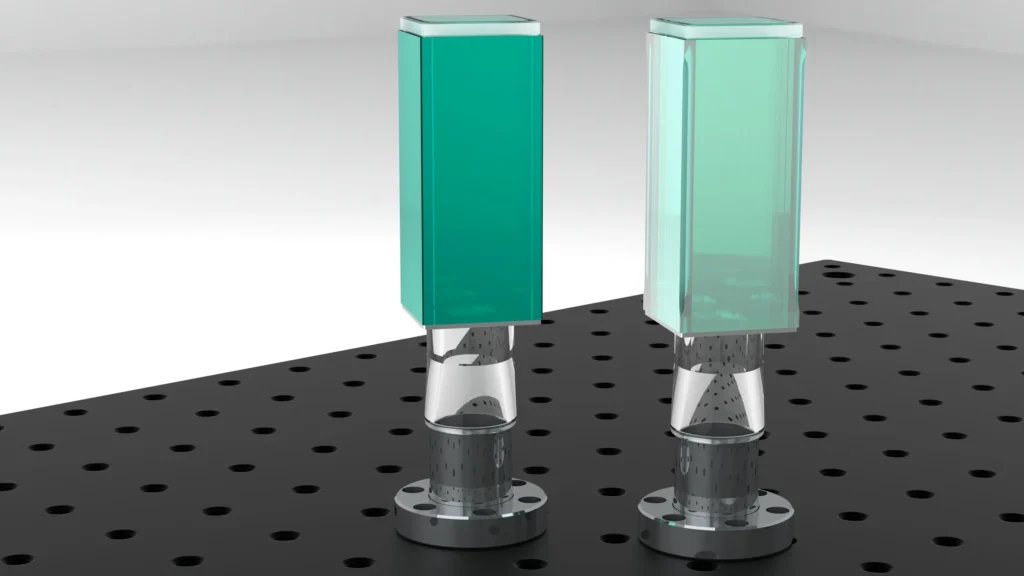

Ultra-High Vacuum Glass Cells
Exceptional Optical Performance | UHV-Compatibility
High-NA Imaging Cells
Infleqtion’s high-quality glass cells offer new optical access to in-vacuum experiments. Assembled with an optical contacting process, the cells provide high-quality AR coatings while maintaining very high optical flatness in the cell walls, enabling minimal optical distortion through the cell. The cell is designed to ensure excellent parallelism between the two large faces, making it possible to image or project light through two faces of the cell with low astigmatism at numerical apertures of up to 0.7. The cells are connected to the flange through an anodic bond to a silicon transfer and have no epoxy or frits, giving them excellent UHV properties.
High-NA Imaging Cells Product Details
Product Features
Optically matched to readily available microscope objectives at 0.3, 0.5, and 0.7NA
- Face parallelism <1 arcminute
- Anti-reflection coating on inside and outside surfaces of all cell walls (uncoated available)
- Bakeable to high temperatures
- BEC Vacuum Cell
- Optical Tweezers Cell
Coating Options
- Broadband from 460nm to 1070nm
- Targeted AR Coating for Cs, Rb, and K
- Custom Coating
Flange Options
- DN16 CF Flange
- DN40 CF Flange with a wide neck glass-to-metal
2 cm AR-Coated Cells
Infleqtion’s high-quality glass cells offer new optical access to in-vacuum experiments. Assembled with an optical contacting process, the cells provide high-quality AR coatings while maintaining very high optical flatness in the cell walls, enabling minimal optical distortion through the cell. The cells are connected to the flange through an anodic bond to a silicon transfer and have no epoxy or frits, giving them excellent UHV compatibility.
2 cm AR-Coated Cells Product Details
Product Features
- Ultrahigh vacuum cell
- Anti-reflection coated on inside and outside of all cell walls
- Bakeable to high temperatures
- Assembled without epoxies or frits
- BEC vacuum cell
- Magneto-optical trap vacuum cell
Coating Options
- Broadband from 460nm to 1070nm
- Targeted AR Coating for Cs, Rb, and K
- Custom Coating
Flange Options
- DN16 CF Flange
- DN40 CF Flange with a wide neck glass-to-metal
2 cm Thin-Walled Cells
Infleqtion’s high-quality glass cells offer new optical access to in-vacuum experiments. The thin-walled cells offer high-quality optical access without AR coatings at an economical price. The cells are connected to a DN16 or DN40 flange with Infleqtion’s proprietary assembly processes, which do not use any epoxy or frits, giving them excellent outgassing properties and making them robust to high bakeout temperatures.
Product Features
- Ultrahigh vacuum cell
- Bakeable to high temperatures
- Assembled without epoxies or frits
- Thin glass walls
