Photonically Integrated Cold Atom Sources (Picas)
Adjustable Picas

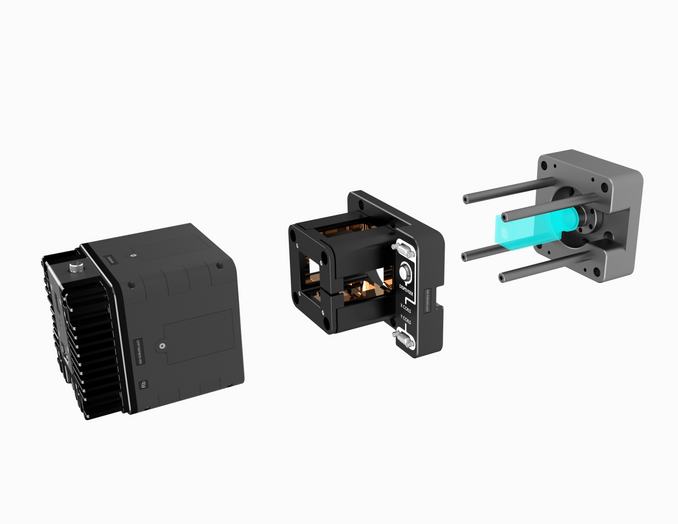

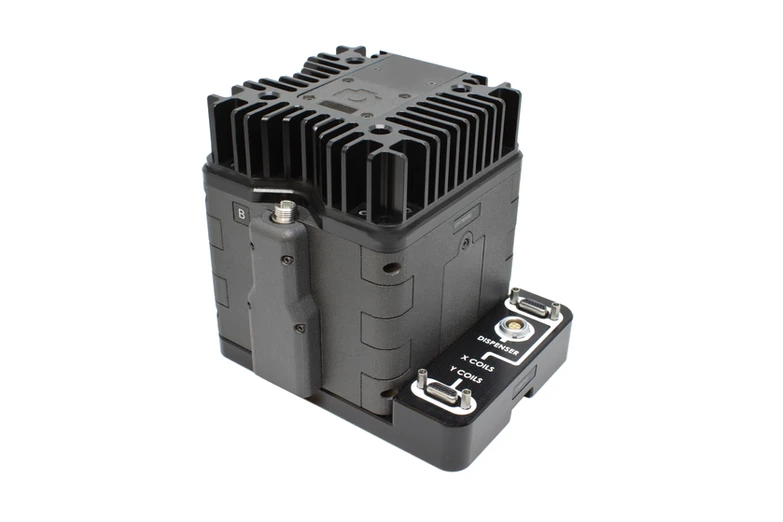

The Adjustable Picas is a compact alignment-free beam delivery package to produce a 2D MOT atomic source when used with Infleqtion’s Cold Atom Source Cell capable of producing >109 atoms per second. It produces a 2D MOT beam configuration with three user-supplied fiber-coupled light inputs and features two sets of magnetic field coils for a switchable magnetic field. Photodiodes provide power monitoring capability for all three beam. This system is perfect for those who are looking for a near turnkey source of atomic flux into their cold or ultra-cold atom experiments.
Adjustable Picas Product Features

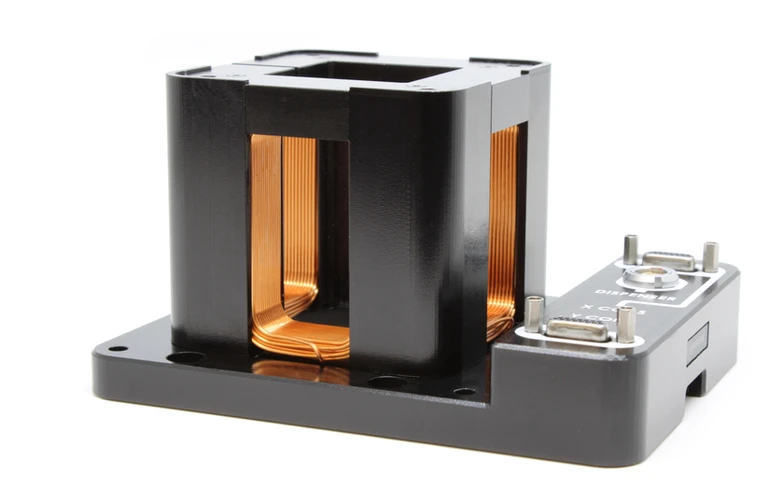

- Coils for Fast Magnetic Field Generation
- Compact Opto-Mechanics
- Alignment-Free 2D+ MOT
- Integrated Heat Sink
- Monitor laser power for automated process control
- Design Wavelengths and Elements
- 780nm (Rubidium)
- 852 nm (Cesium)
Product Documents
Mounting Plate Data Sheets
Fixed Picas

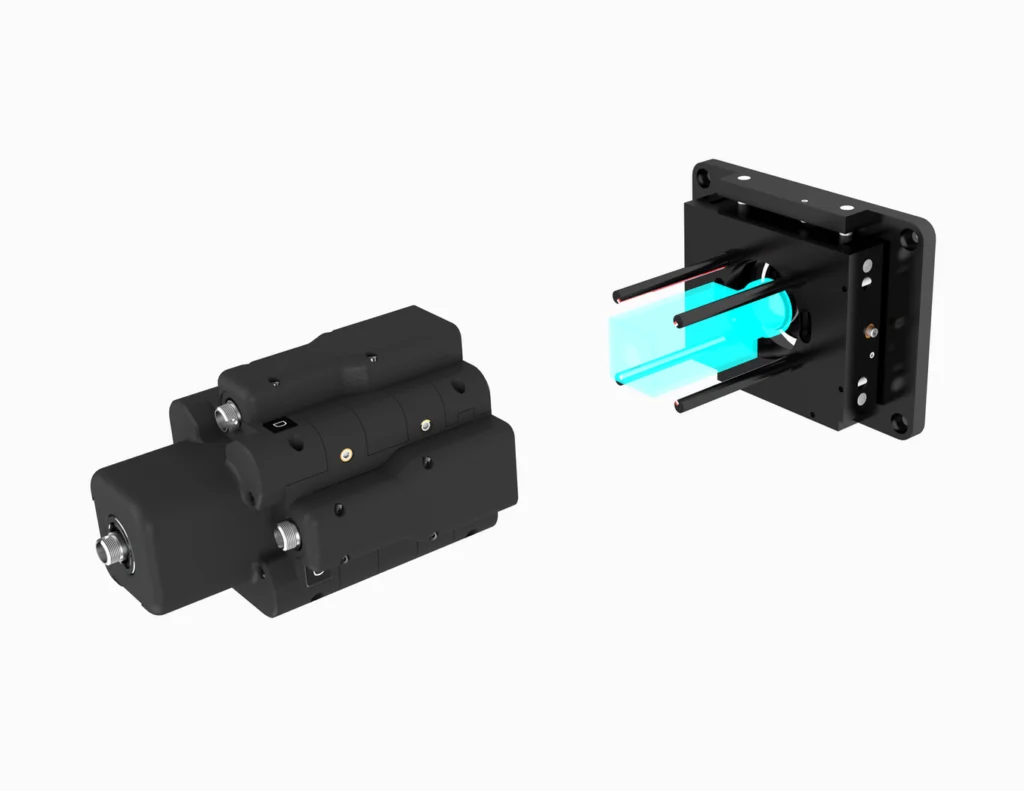

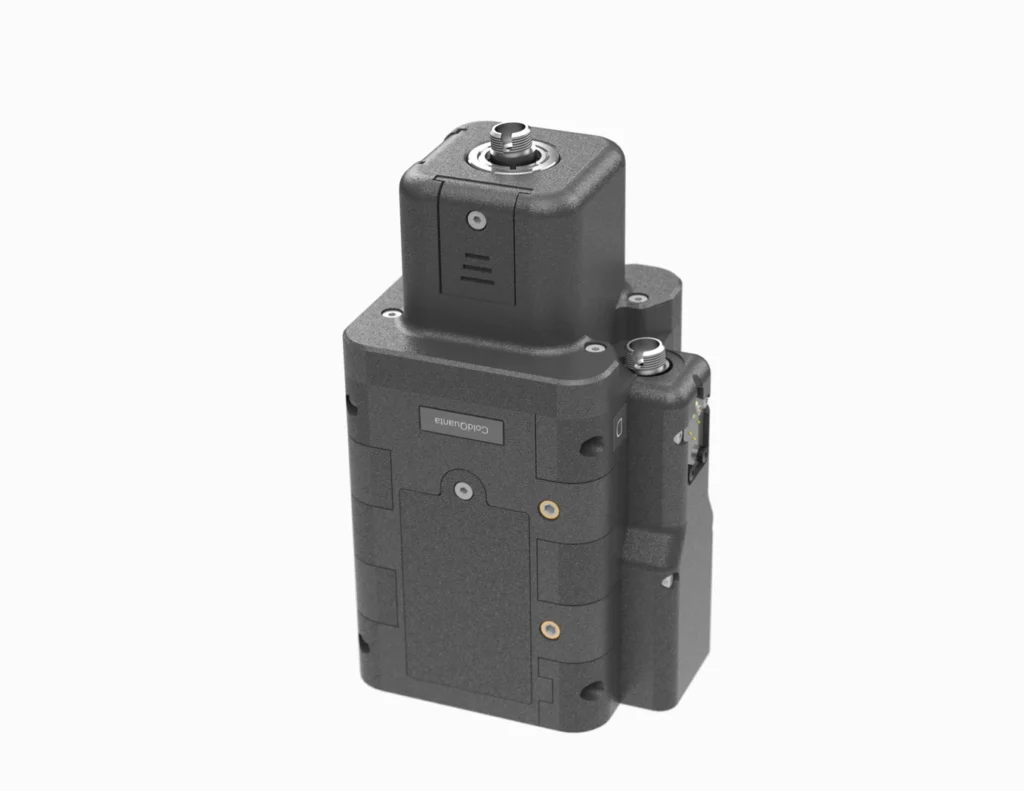

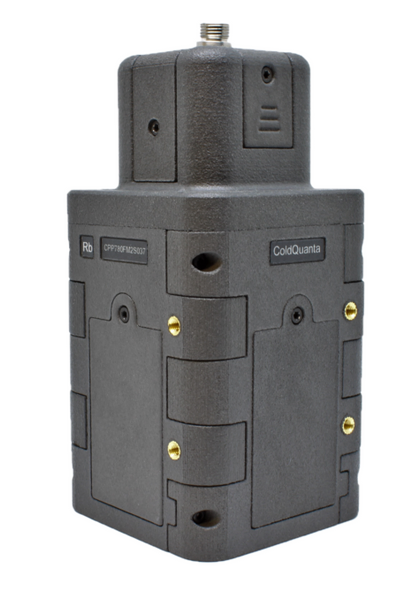

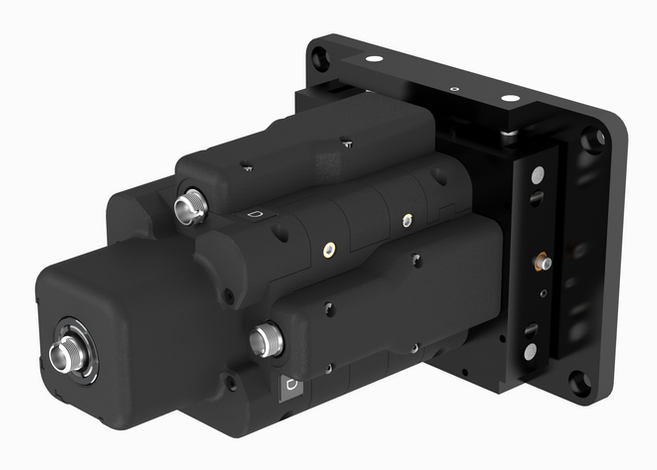

The Fixed Picas is a compact, alignment-free beam delivery package. It produces a 2D+ MOT beam configuration with three user-supplied fiber-coupled light inputs, capable of producing a cold atom flux of >10⁹ atoms per second when used with Infleqtion’s well-established CASC, Cold Atom Source Cell. The unit is easily integrated into the 2D+ MOT Magnet Assembly, allowing a simple plug-and-play optical package.

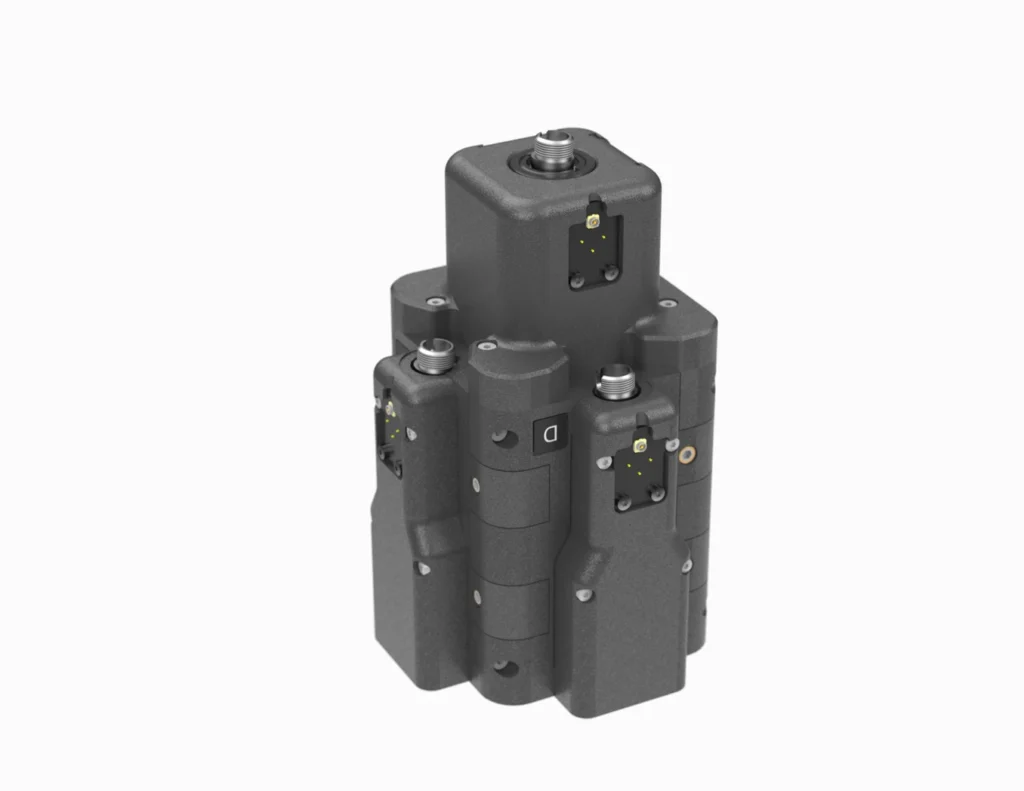

Photodiodes provide power monitoring capability for all three beams.
Features
- Compact Optics System
- Simple 2D MOT Alignment
- Pre-defined Polarization
- Monitor laser power for automated process control
- Design Wavelengths and Elementsgths and Elements
- 780nm (Rubidium)
- 852 nm (Cesium)
Related Products
doubleMOT
The doubleMOT system is a self-contained, tabletop, ultrahigh vacuum system for easily cooling and trapping atoms. With applications ranging from fundamental quantum physics research to developing sensors and new quantum technologies, the doubleMOT is a versatile and powerful cold atom core.
RuBECi
The RuBECi is a self-contained, tabletop, ultrahigh vacuum system for creating and manipulating ultra-cold atoms. It utilizes a two-cell vacuum system (a 2D+ MOT source cell and an ultra-high vacuum science cell compatible with long trap lifetimes). It features an atom chip for simple and rapid BEC production.
